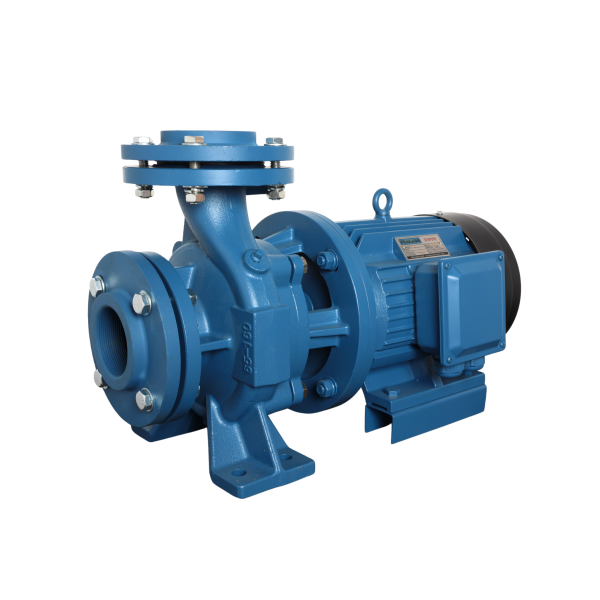

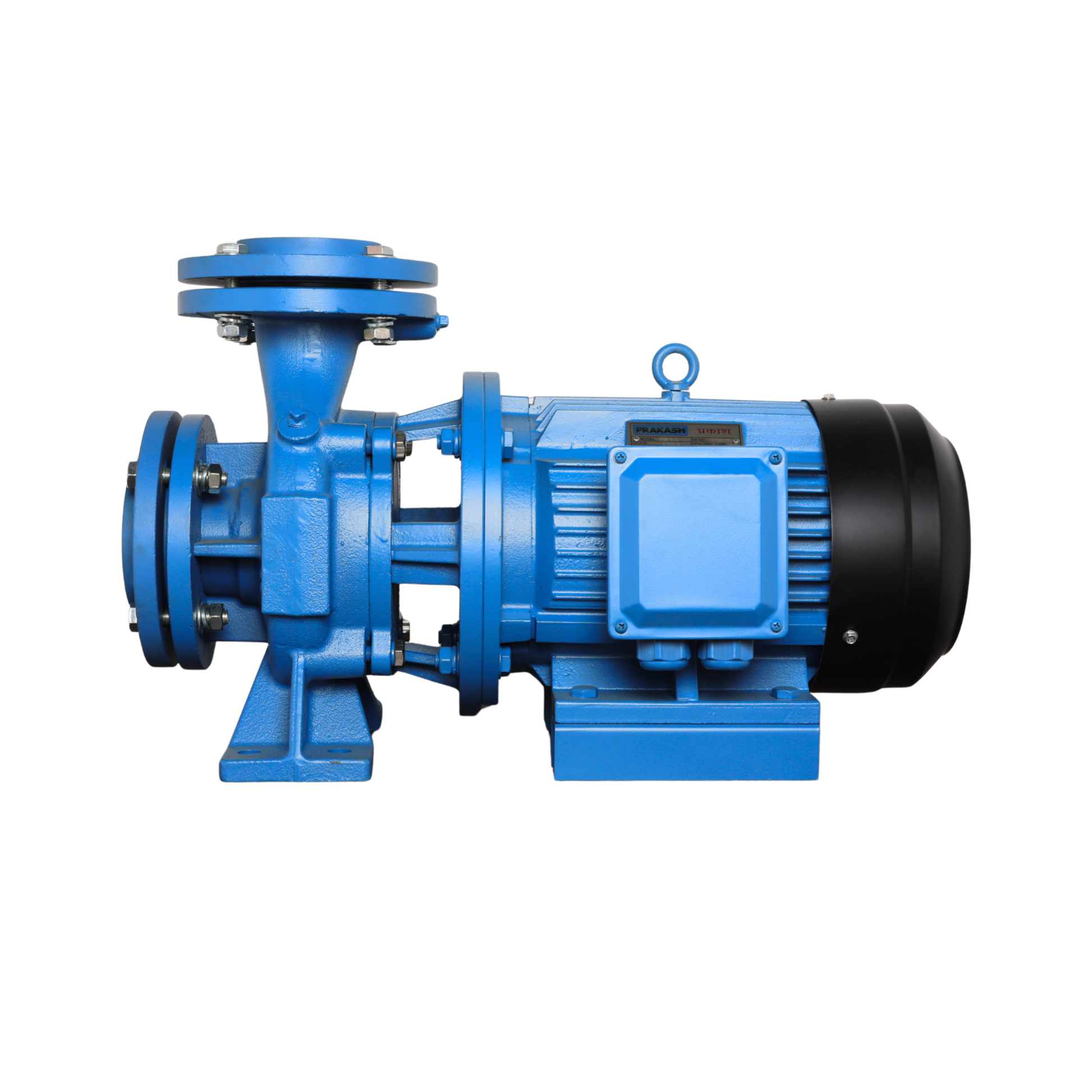

Prakash Centrifugal Monoblock Pump Three Phase - 5.5 Hp - (2.5X2.5)- 1 Year 1 Time Repair Warranty

Download PDF: Click here

Application:

• Agricultural, Industries, Plant
• Irrigation of fields/farms
• Hot & cold water circulation
• Housing complexes
• Fire fighting system
• Community water supply

Specification:

• Max Flow: 40 m3/h
• Max Head: 32 m
• Speed: 3500 rpm
• Power: 4.0 kW / 5.5 HP
• Voltage: 380-420V, 60Hz
• Max suction: 8m
• Inlet/Outlet: 2.5"x2.5"
• Max Liquid Temperature: Up to 105°C
• Max Ambient Temperature Up to 40°C
• Insulation Class: F
• Protection class: IPX4 / IP54
• pH: 6-8

Installation and Use : These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids, and thanks to their Special design, which allows back pull-out of the motor and the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high-pressure system heating, conditioning, and any other service requiring transfer of clean liquids.
