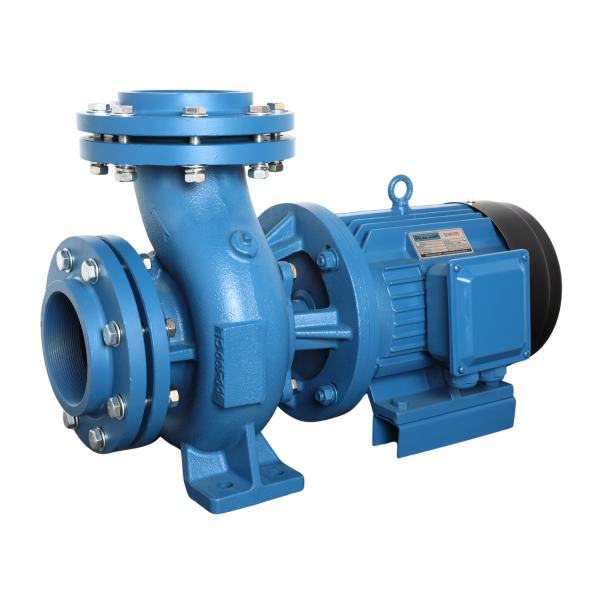

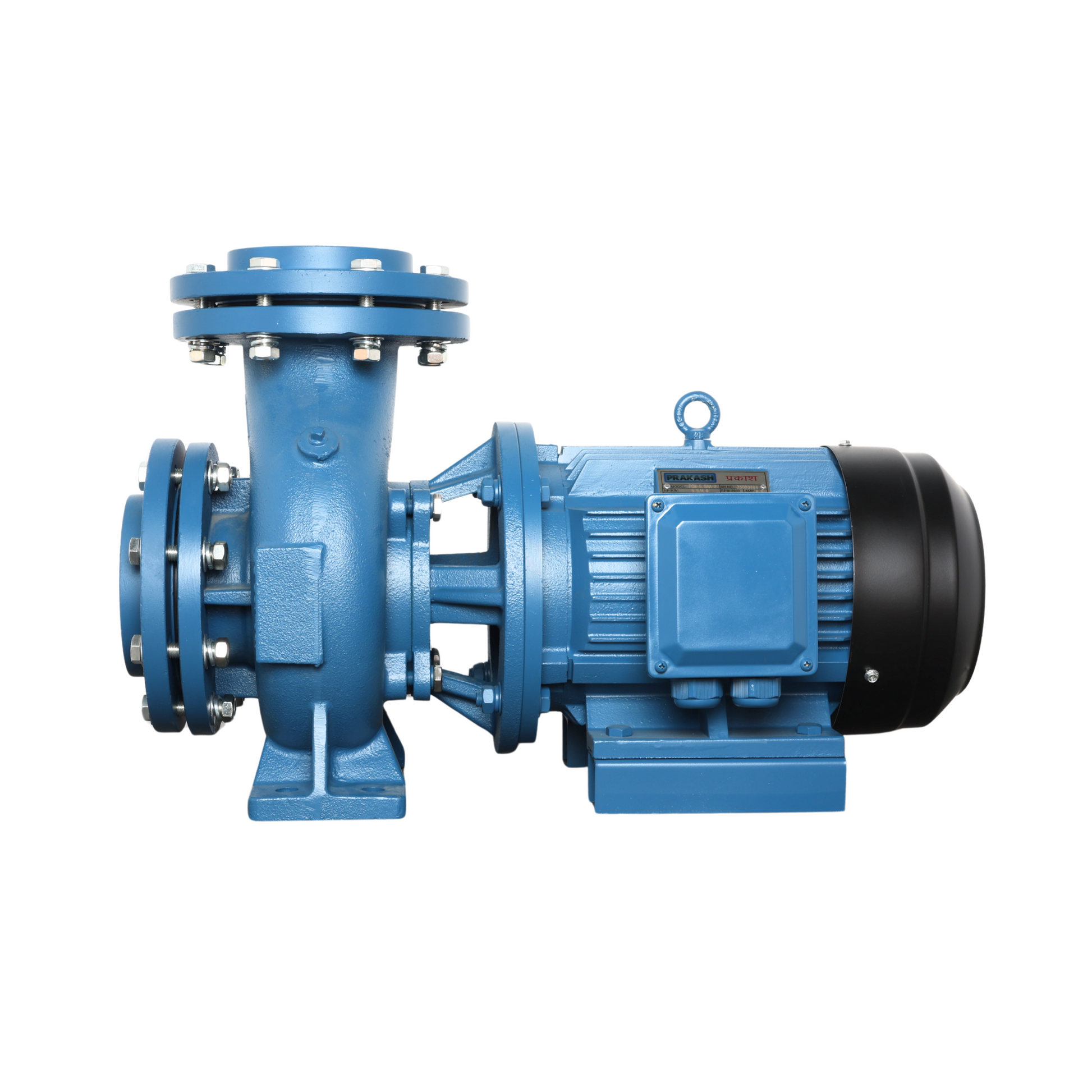

Prakash Centrifugal Monoblock Pump Three Phase - 5.5 Hp - (4X4) -1 Year 1 Time Repair Warranty

Download PDF: Click here

Applications:-
Agricultural, Industries
Irrigation of Fields/Farms
Hot and cold water circulation
Housing Complexes
Fire Fighting System
Community water supply

Specifications:-

• Max Flow: 130 M3/H
• Max Head: 16m
• Speed: 2900 RPM
• Power: 4 kW / 5.5 HP
• Suction: Up to 8m
• Liquid Temperature between 0°C to 105°C
• Ambient Temperature Up to 40°C
• Max Working Pressure 10 Bar
• Voltage : 380-420V, 50Hz



  Installation and Use:-

  These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids, and thanks to their Special design, which allows back pull-out of the motor and the rotary parts of the pump can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high-pressure system heating, conditioning, and any other service requiring transfer of clean liquids.
