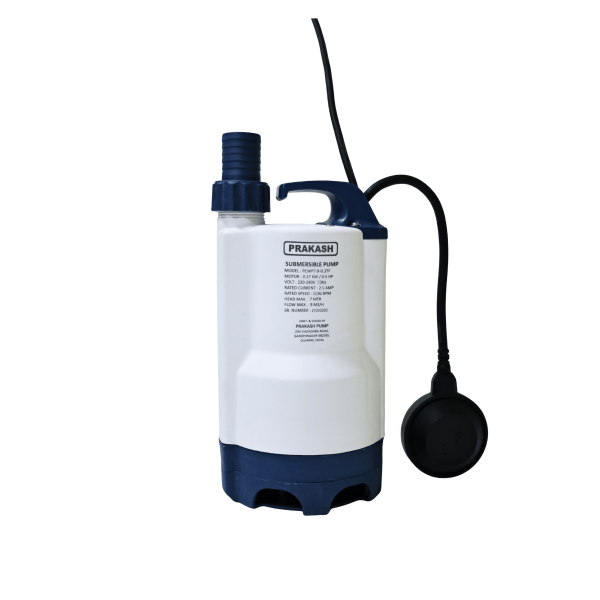

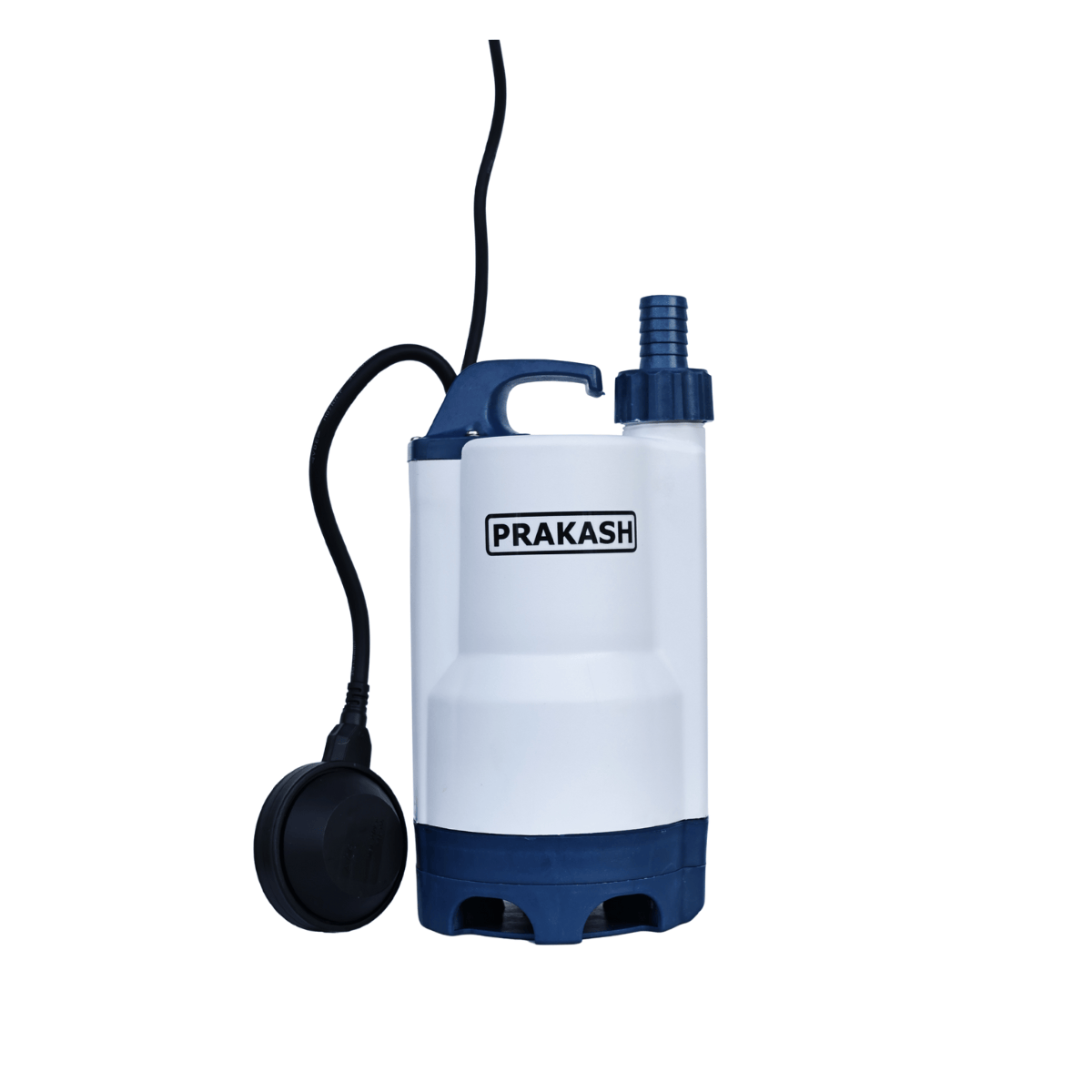

Prakash Clean Water Pump 0.5 HP (1.25 inch)

Download PDF: Click here

Applications:

• Household water supply
• Garden watering
• Pressure boosting system
• Agriculture
• Irrigation



  Specification :

  • Max Flow: 150 LPM
  • Max Head: 7 m
  • Rated Speed: 3450 RPM
  • Outlet: 1.25"
  • Liquid Temperature: up to 45°C
  • Power Supply: Single Phase 220-240V, 60Hz
  • Power: 0.37 Kw / 0.5 HP
  • Insulation Class: F
  • Protection Class: IPX8/IP68



  Function and feature :

  Lightweight, compact design for easy transport and positioning of the pump.
  Built-in thermal protection prevent motor from overloading and overheating.
  Chrome-plated shaft ensures high corrosion resistance and durability.

Installation and Use :

This model of pump is characterized by high heads, compact size, light weight, and convenient use, and is widely used in high-position water delivery, flushing, and places such as construction sites. The float switch can automatically turn on and off with the change of the water level. The protector in the motor can automatically cut off the power when it overheat over current.

Warranty & Guarantee:
1 Year 1 Time Replacement Guarantee*
