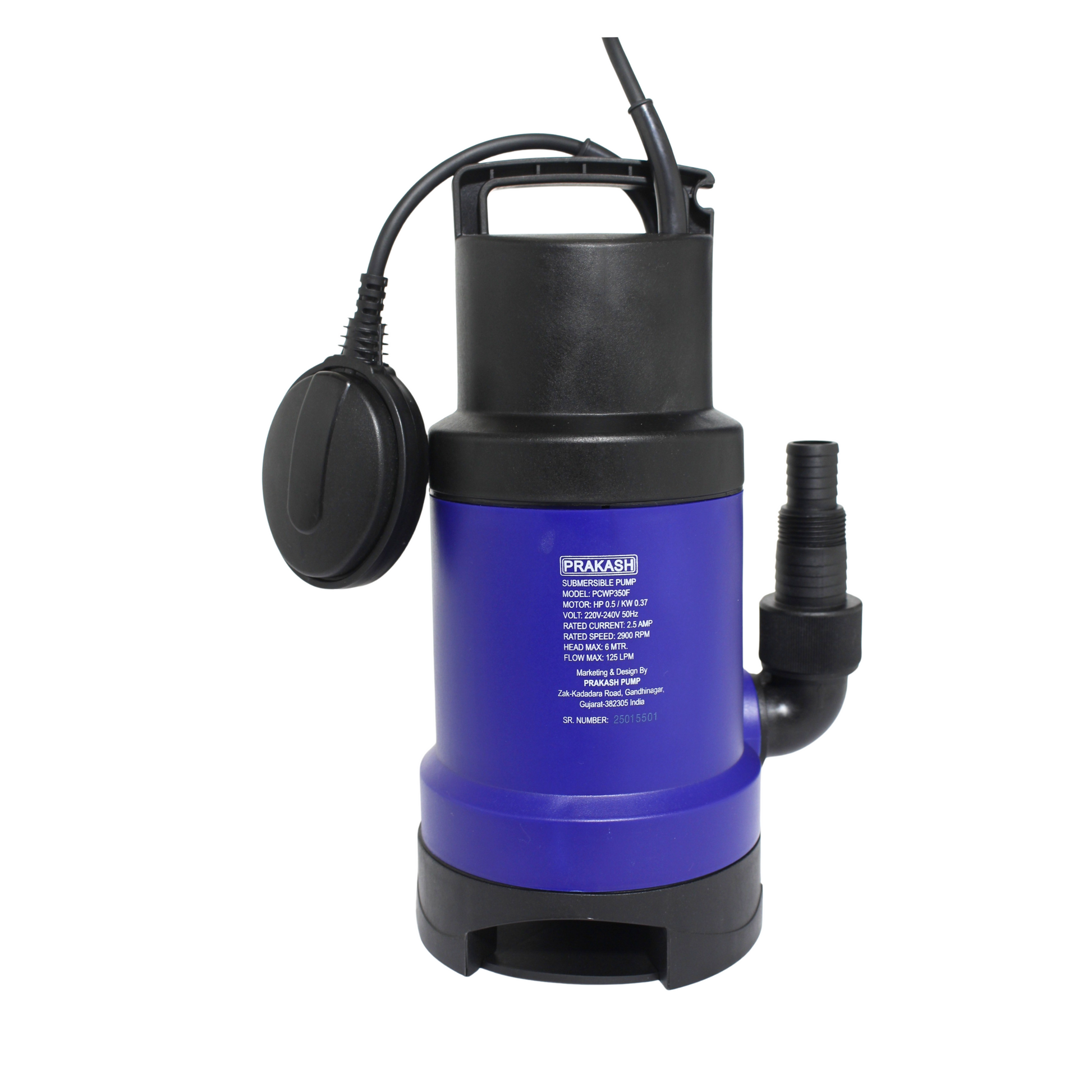

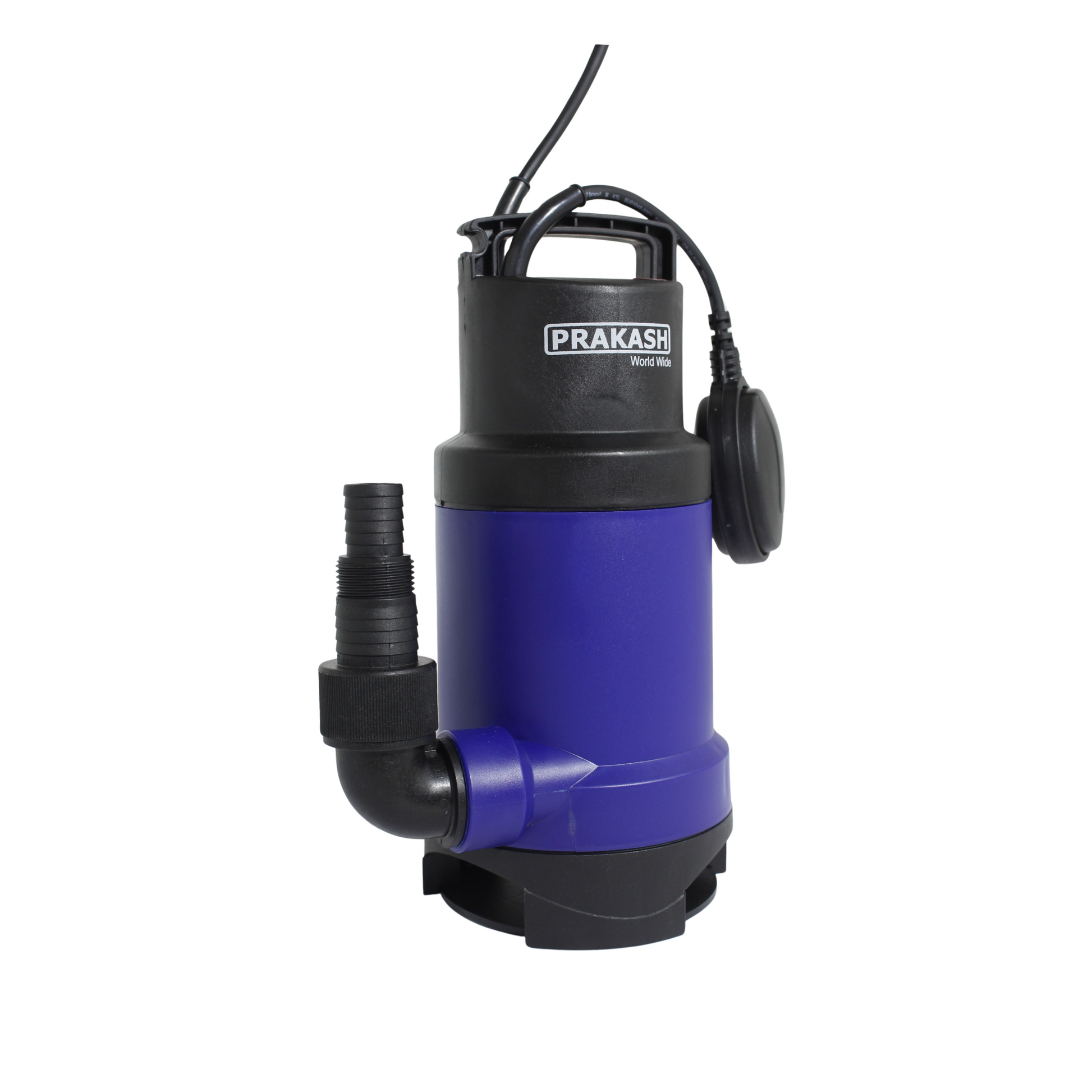

Prakash Clean Water Pump - 0.5 HP 1 Year 1 Time Replacement Guarantee

Download PDF: Click here

Application:

• Household water supply
• Garden watering
• Pressure boosting system
• Agriculture
• Irrigation

Specification:

• Max Flow : 125 LPM
• Max Head : 6 m
• Power : 0.37 kW / 0.5 HP
• Power Supply: Single Phase 220-240V, 50Hz
• Liquid Temperature: Up to 40°C
• Outlet : 1.25"
• Rated Speed : 2900 RPM
• Protection Class : IPX8
• Insulation Class : F
• Liquid pH Value: 6.5-8.5

Function and feature :

Light weight, compact design for easy transport and positioning of pump.
Built-in thermal protection prevent motor from overloading, overheating.
Chrome plated shaft ensure high corrosion resistant and durability.

Installation and Use :

This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used in high-position water delivery, flush and places as construction sites. The float switch can automatically control on and of with the change of the water level. The protector in the motor can automatically cut off the power when it overheat over current.
