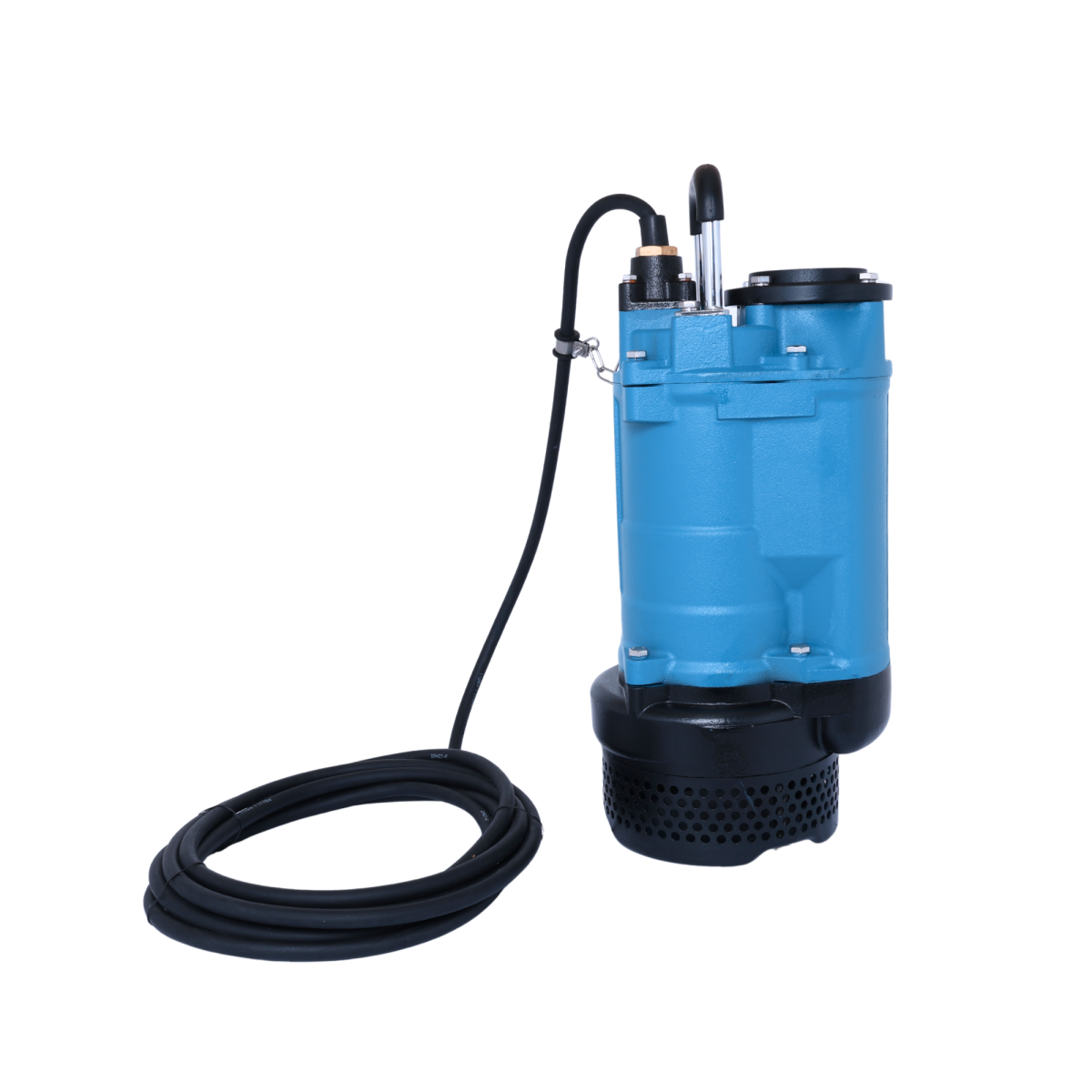

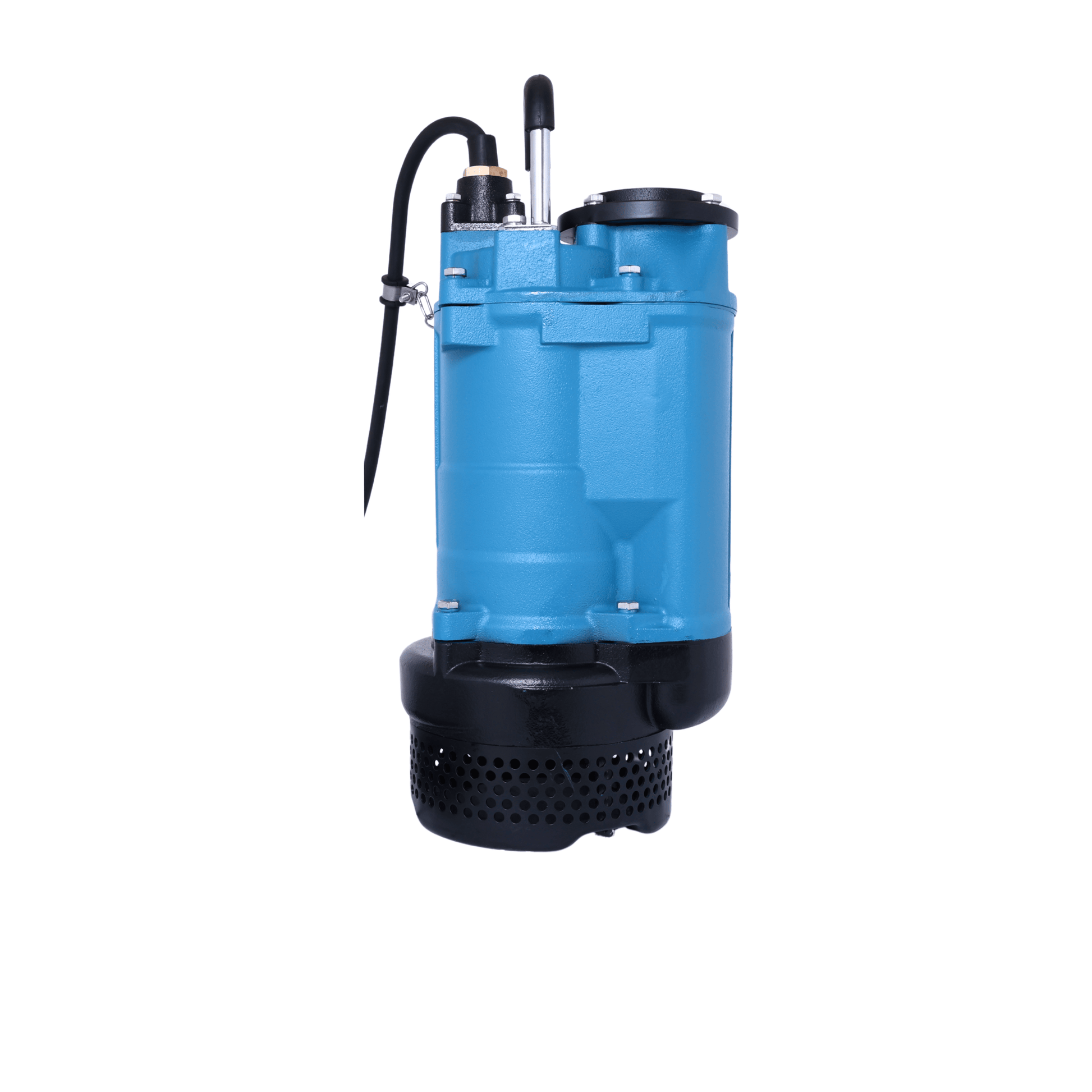

Prakash Dewatering Pump 5.5 HP (3 inch)

Download PDF: Click here

Applications:

• Civil Engineering
• Mines, quarries, coal ore and slurries
• Sewage Treatment plants
• General pumping purposes

Specification:

• Water temperature : Up to 45°C
• Power Supply : Three phase 380-420V, 50Hz
• Power : 4.0 kW / 5.5 HP
• Insulation Class: F
• Protection Class : IP68
• Max Flow : 55 M3/HR
• Max Head : 29 m
• Outlet : 3"
• Speed : 2900 RPM
• Liquid pH Value : 6.5 - 8.5
• Cable length : 8 m



Function, Feature and Installation :

• Compact design, high performance and exceptional durability for handling abrasive liquid, widely used in general construction and civil engineering.
• The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability.
• Greatly increased maximum submersion depth due to mechanical seal resistance to high pressure (0.5Mpa)
• Semi-open impeller made of SS 304 match with diffuser plate (SS304) achieves superior durability.
• Effective motor cooling due to discharge channel cast iron as part of the motor housing. Space economy by a top outlet.
• Hermetically sealed motor equip build-in thermal protection. The protector in the motor can automatically cut off the power when it overheats or over current.

Warranty:
1 Year 1 Time Repair Warranty*
