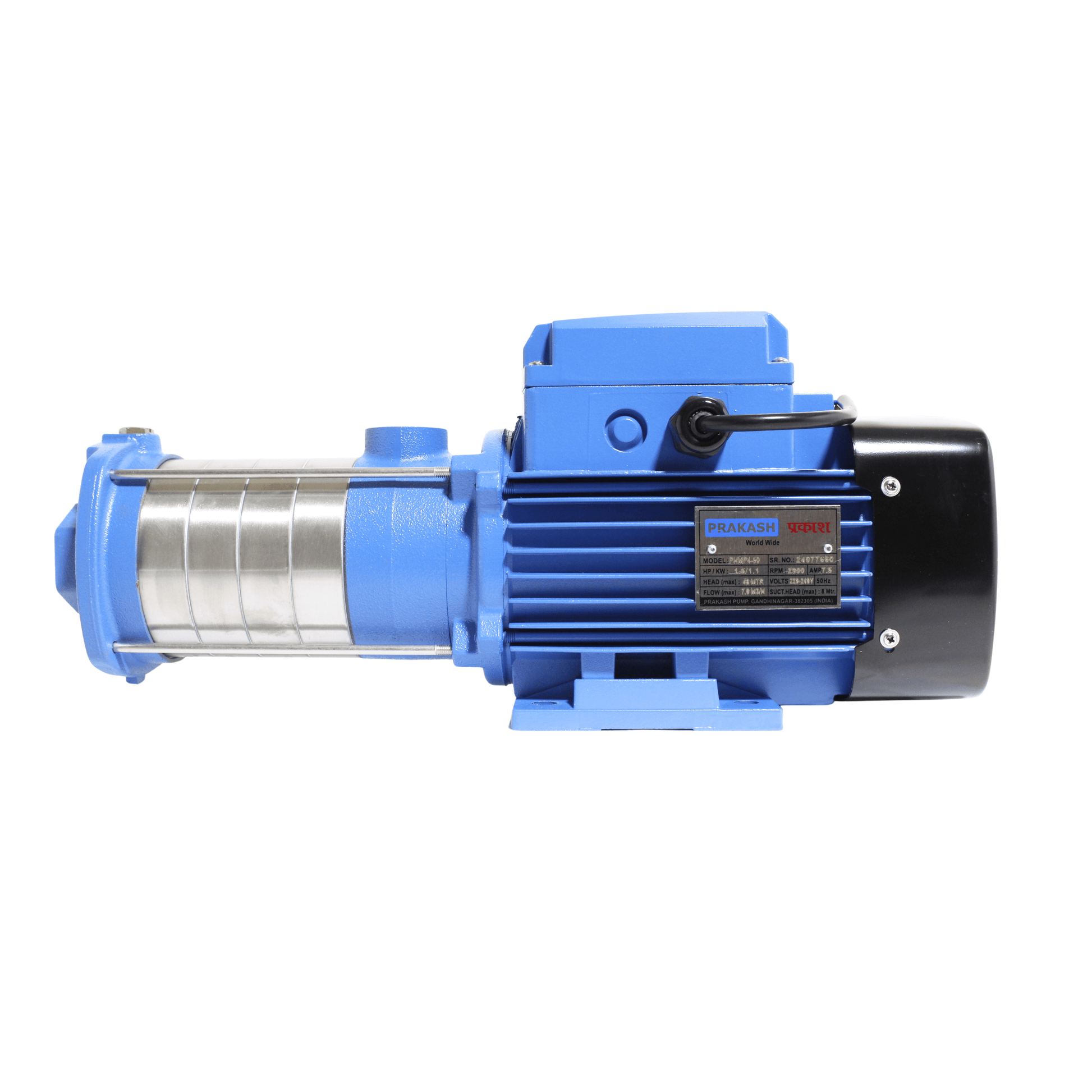

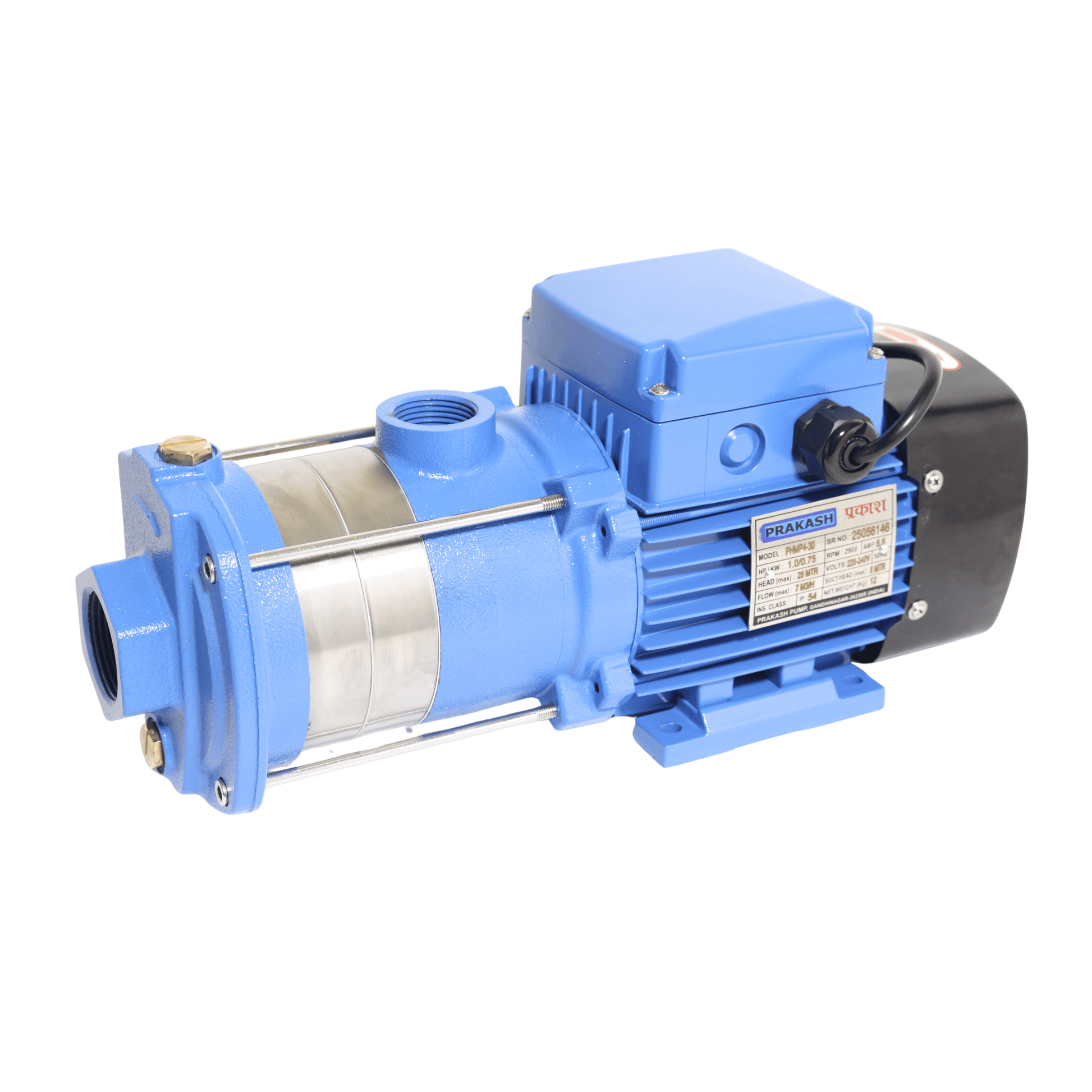

Prakash Horizontal Multistage Pump - 1.5 HP - (1.25X1) 5 Stage -2 Year 1 Time Replacement Guarantee (5 Impeller)

Download PDF: Click here

Application:

• Household Water supply
• Equipment support
• Pipeline Pressurization
• Garden Watering
• Vegetable Greenhouse watering
• Fish farming and poultry raising
• Industrial and mining
• Water Supply and drainage of enterprises
• High-Rise buildings
• Central air conditioner
• Centralized heating circulation system etc.

Specifications :
Max Flow : 117 LPM
Max Head : 58 m
Speed : 2900 rpm
Power : 0.55-1.1 Kw
Inlet/Outlet : 1.25" x 1"
Max Suction : 8m
Voltage : 220-240V, 50Hz
Max Liquid Temperature : Up to 90°C
Max Ambient Temperature : Up to 40°C
Insulation Class : F
Protection class : IPX4
Liquid pH value : 4-10
Altitude : < 1000 m
Thermal protector : in built (Single phase motor)
