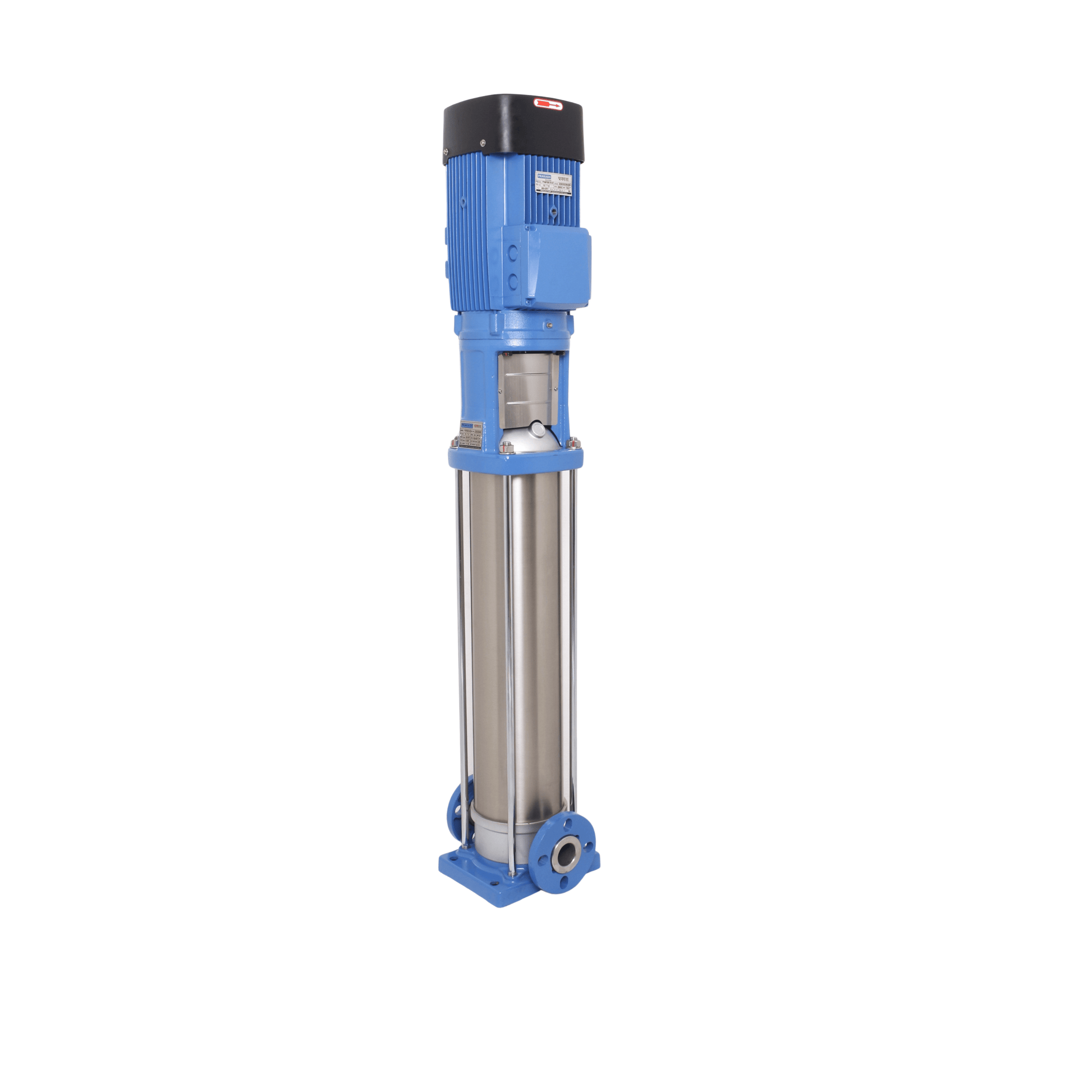

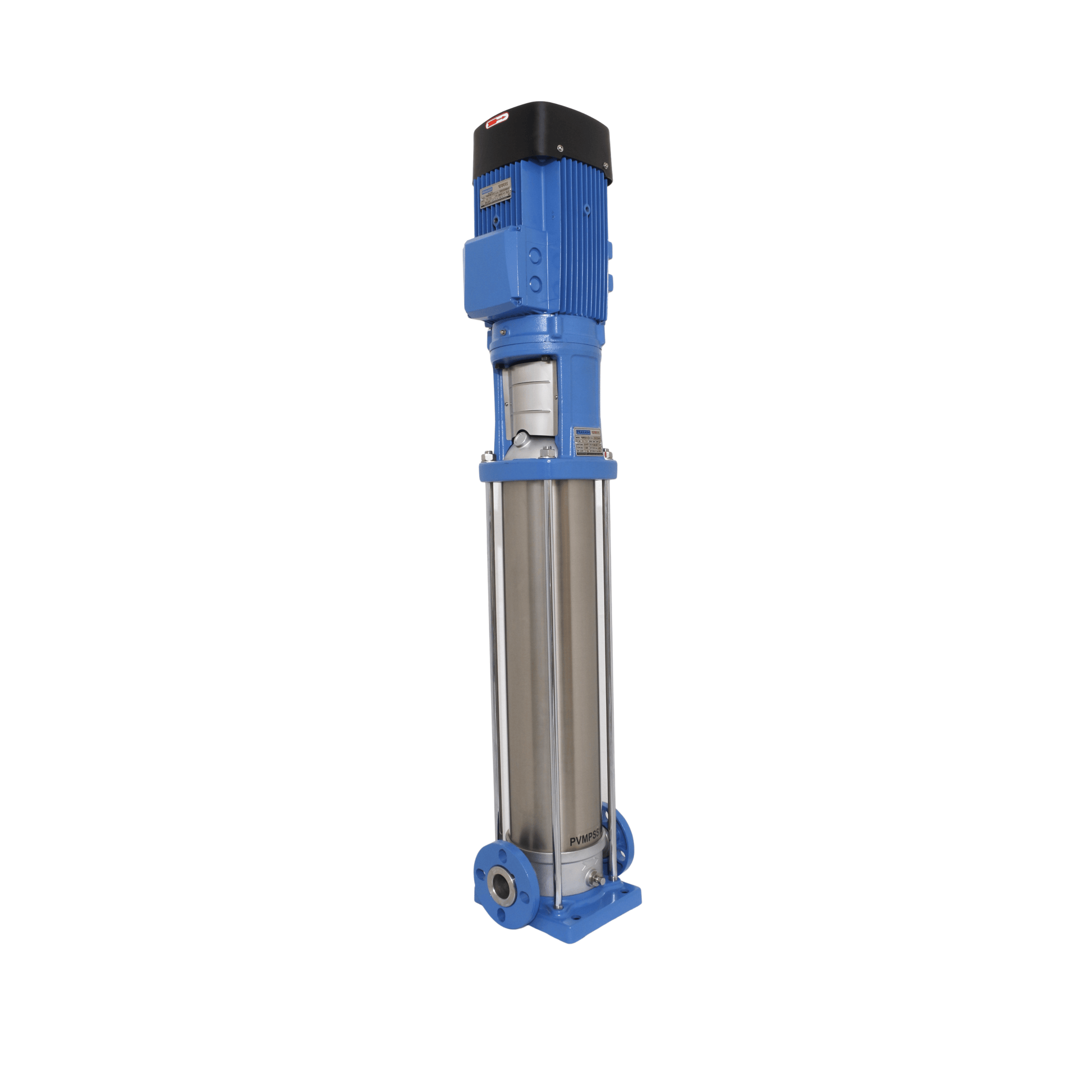

Prakash Vertical Multistage - 10.0 HP Three Phase (1.5 inch) - 1 Year 1 Time Repair Warranty

Download PDF: Click here

DESCRIPTION :

Vertical Multistage Stainless Steel centrifugal Pumps for high pressure water supply system, which are compact in size and maintain constant pressure.

APPLICATIONS :

This series are suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.

• Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
• Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, support equipment’s.
• Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools.
• Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
• Food and beverage industry
• Fire-fighting systems



FEATURES:
Compact, nice appearance, efficient, low noise, reliable seal, easy to use and Maintain.

OPERATING CONDITIONS:
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

SPECIFICATION:

• Models : PVMP10-2 to PVMP10-22
• Max Head : 226 m
• Max Flow : 13 M3/HR
• Motor Power : 0.75 kW - 7.5 kW (1.0 HP - 10 HP)
• Voltage : Single Phase 220-240V, 50 Hz
                      Three Phase 380-420V, 50 Hz
• Inlet/Outlet : 1.5" x 1.5"
• Max Pump Efficiency : 65%
• Liquid Temperature : Up to 120°C
• Liquid pH Value : 4-10
• Altitude : < 1000m


• For more information download the catalog.
