Prakash Vertical Multistage - 5.5 HP Three Phase ( 2 inch) - 1 Year 1 Time Repair Warranty

Download PDF: Click here

DESCRIPTION :

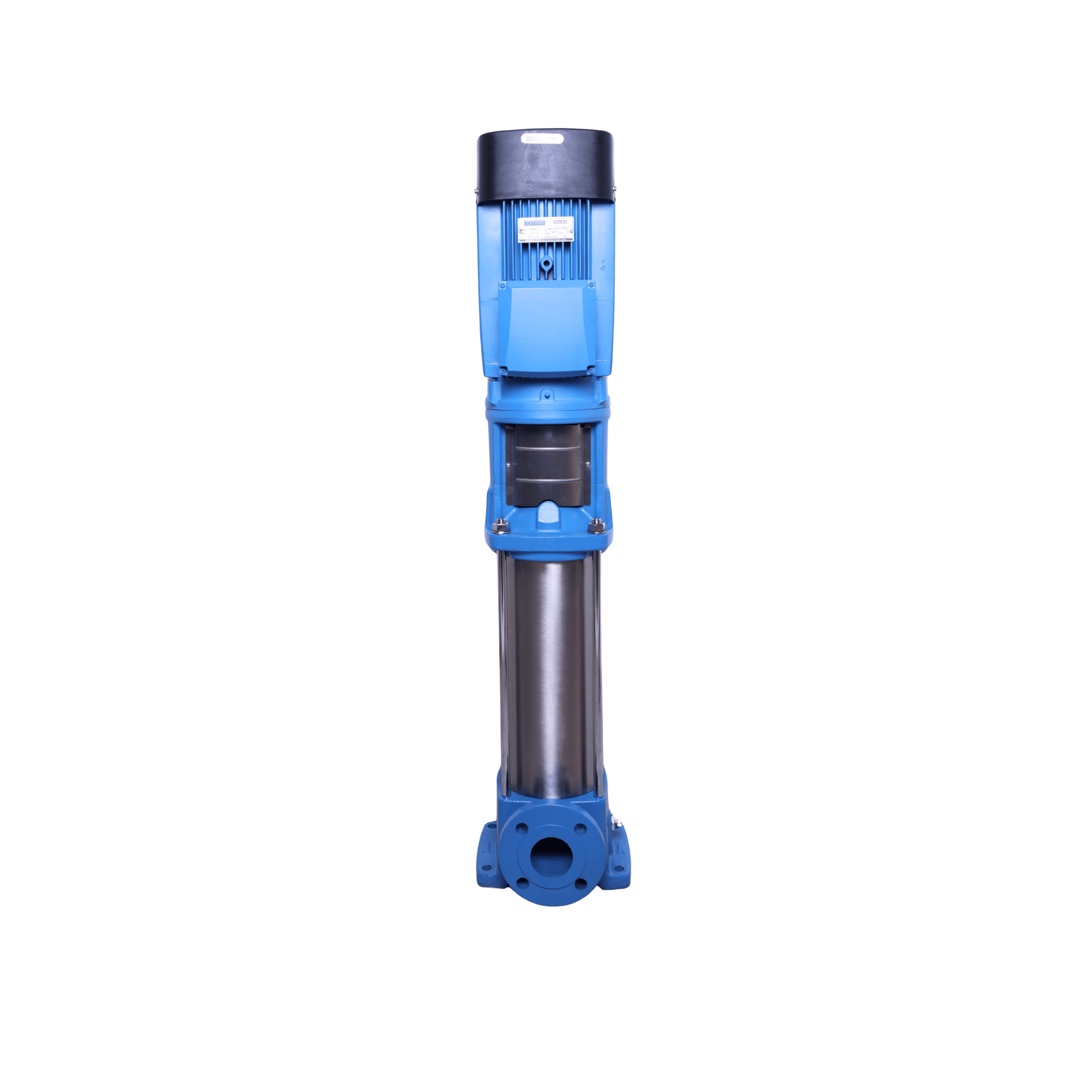

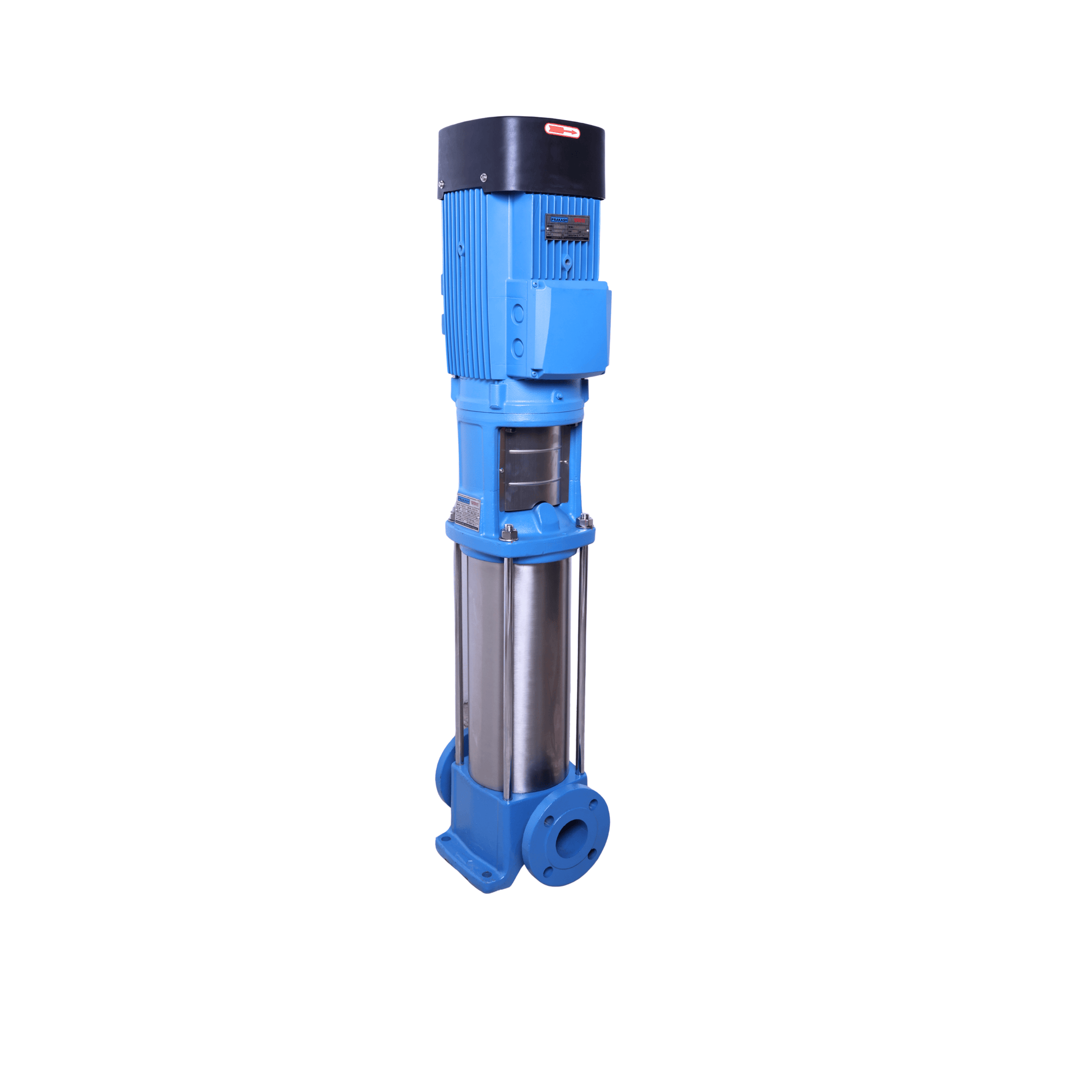

Stainless steel vertical multistage centrifugal pumps for high pressure water supply system, which are compact in size and maintain constant pressure.

APPLICATIONS :

This series are suitable for transferring liquids of low viscosity, non-inflammable and non-Explosive, not containing solid particles or fibers.

• Water supply: Water supply and drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
• Industry: Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary systems, support equipment’s.
• Water treatment: ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools.
• Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
• Food and beverage industry
• Fire-fighting systems



FEATURES:
Compact, nice appearance, efficient, low noise, reliable seal, easy to use and Maintain.

OPERATING CONDITIONS:
Low viscosity non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density is higher than that of water, a motor with a higher output power rating shall be used.

SPECIFACATIONS :

• Models : PVMP15-1 To PVMP15-17
• Max Flow : 23.5 M3/HR
• Max Head : 231 m
• Motor Power : 1.1 kW - 15 kW (1.5 HP - 20 HP)
• Voltage : Single Phase 220-240V, 50 Hz
                        Three Phase 380-420V, 50 Hz
• Inlet/Outlet : 2" x 2"
• Max Pump Efficiency : 70%
• Liquid Temperature : Up to 120°C
• Liquid pH Value  : 4-10
• Altitude : < 1000m


• For more information download the catalog.
